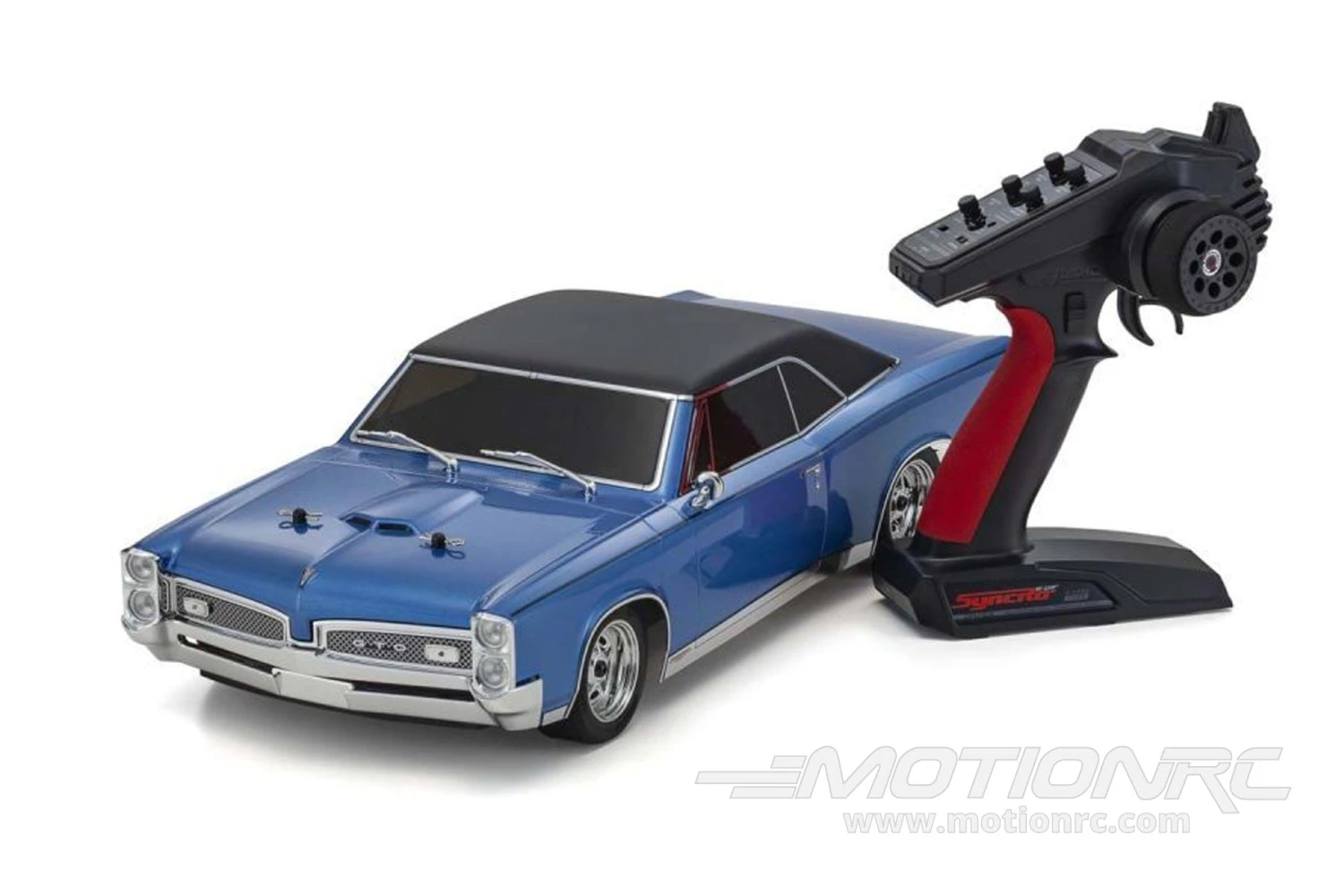

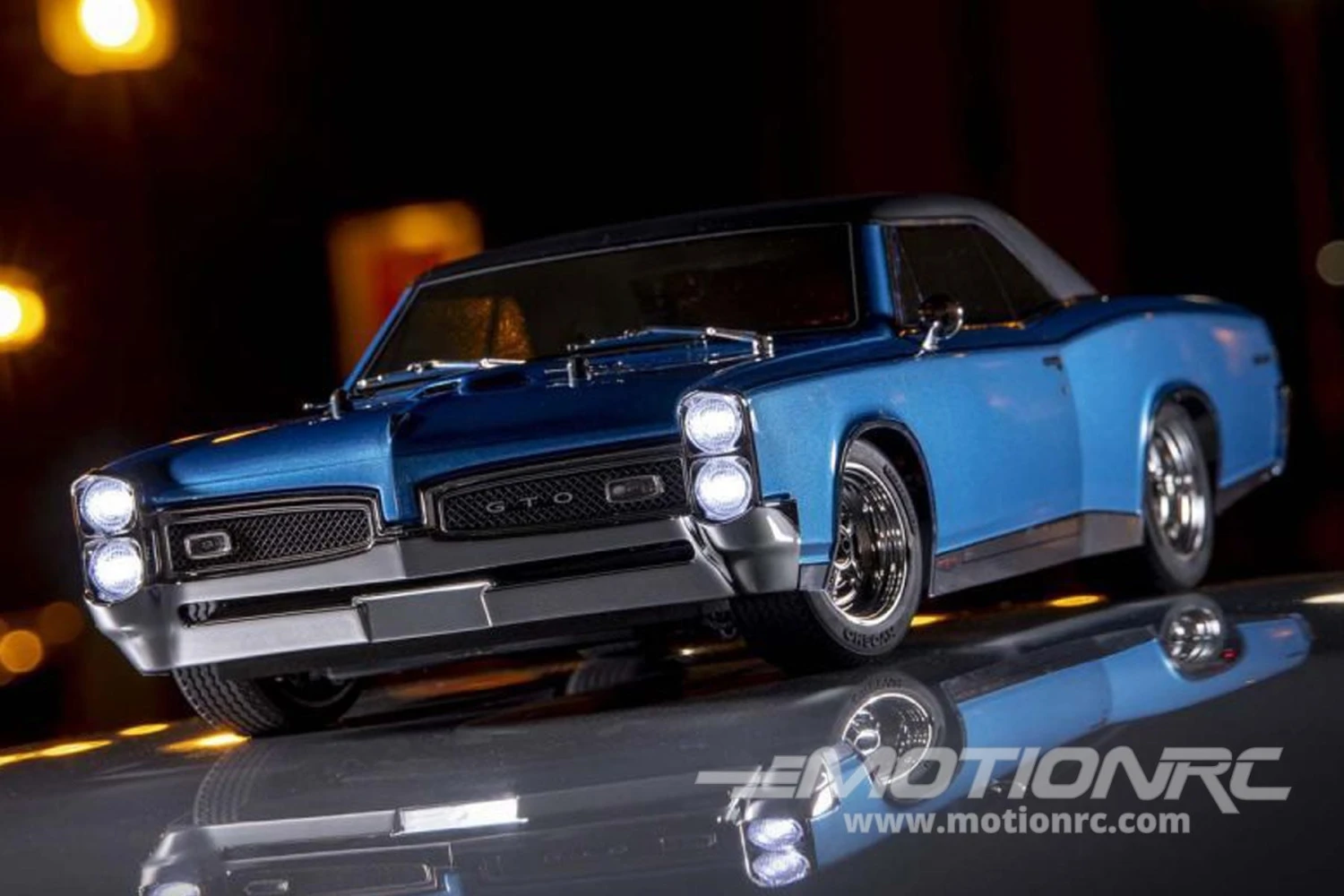

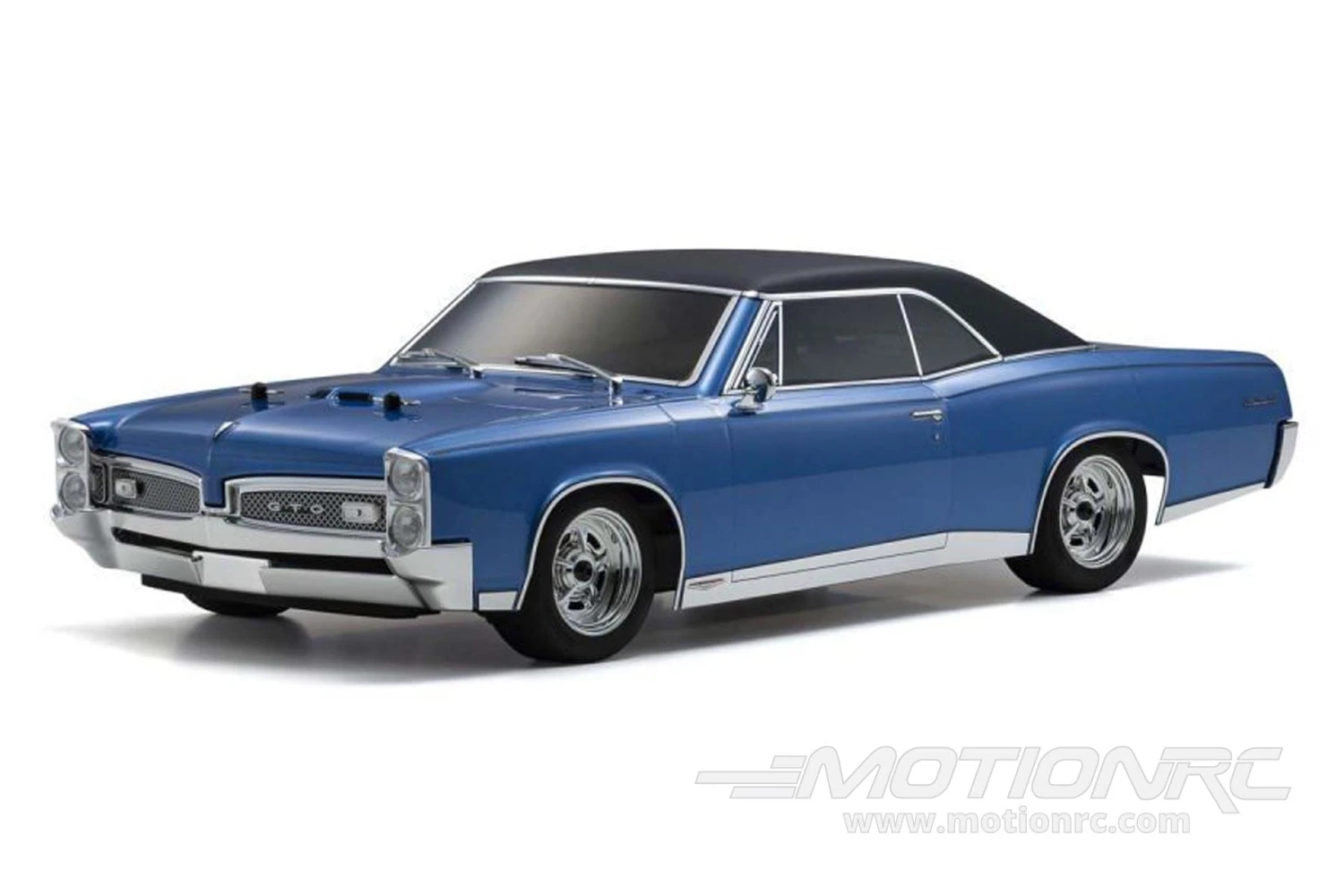

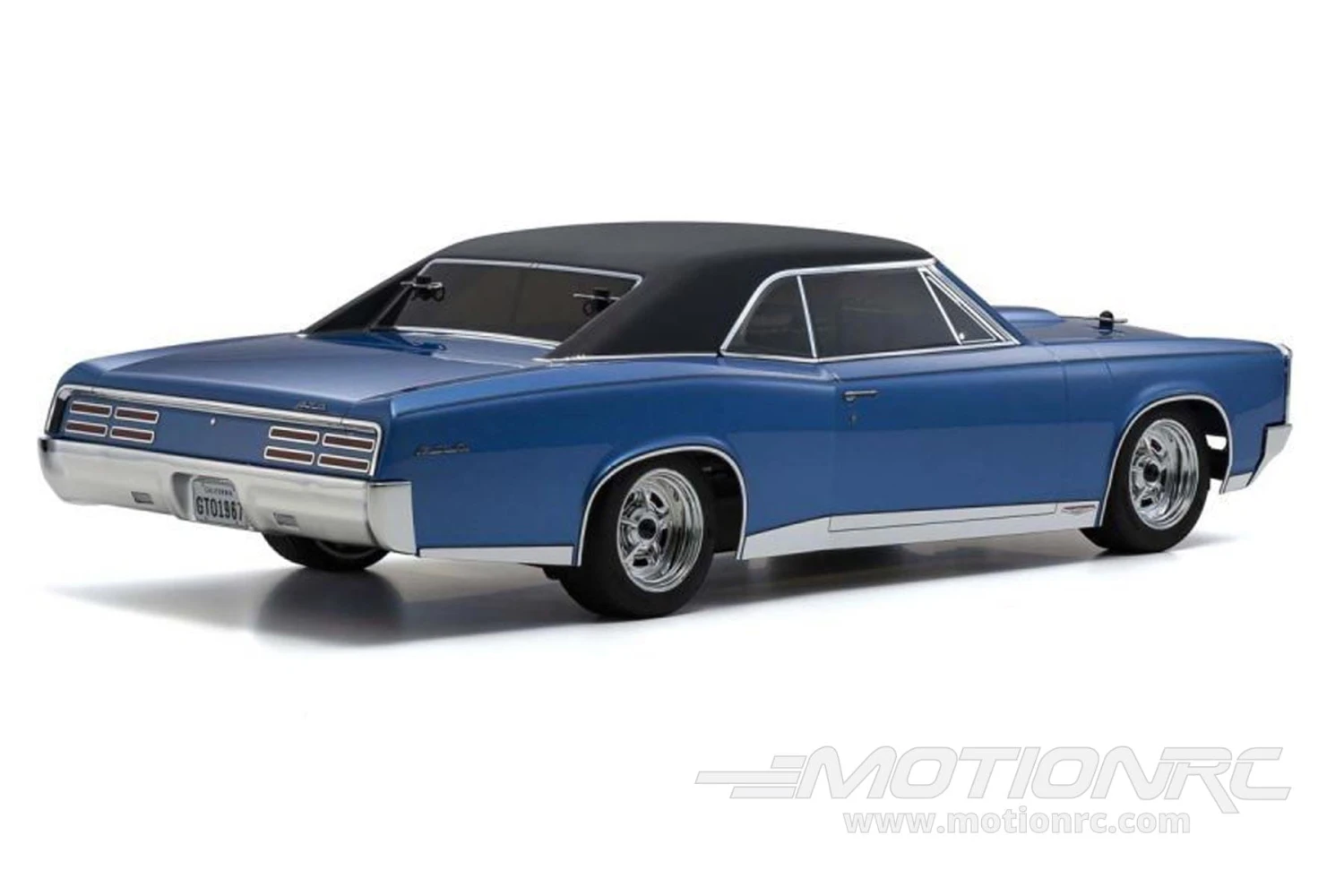

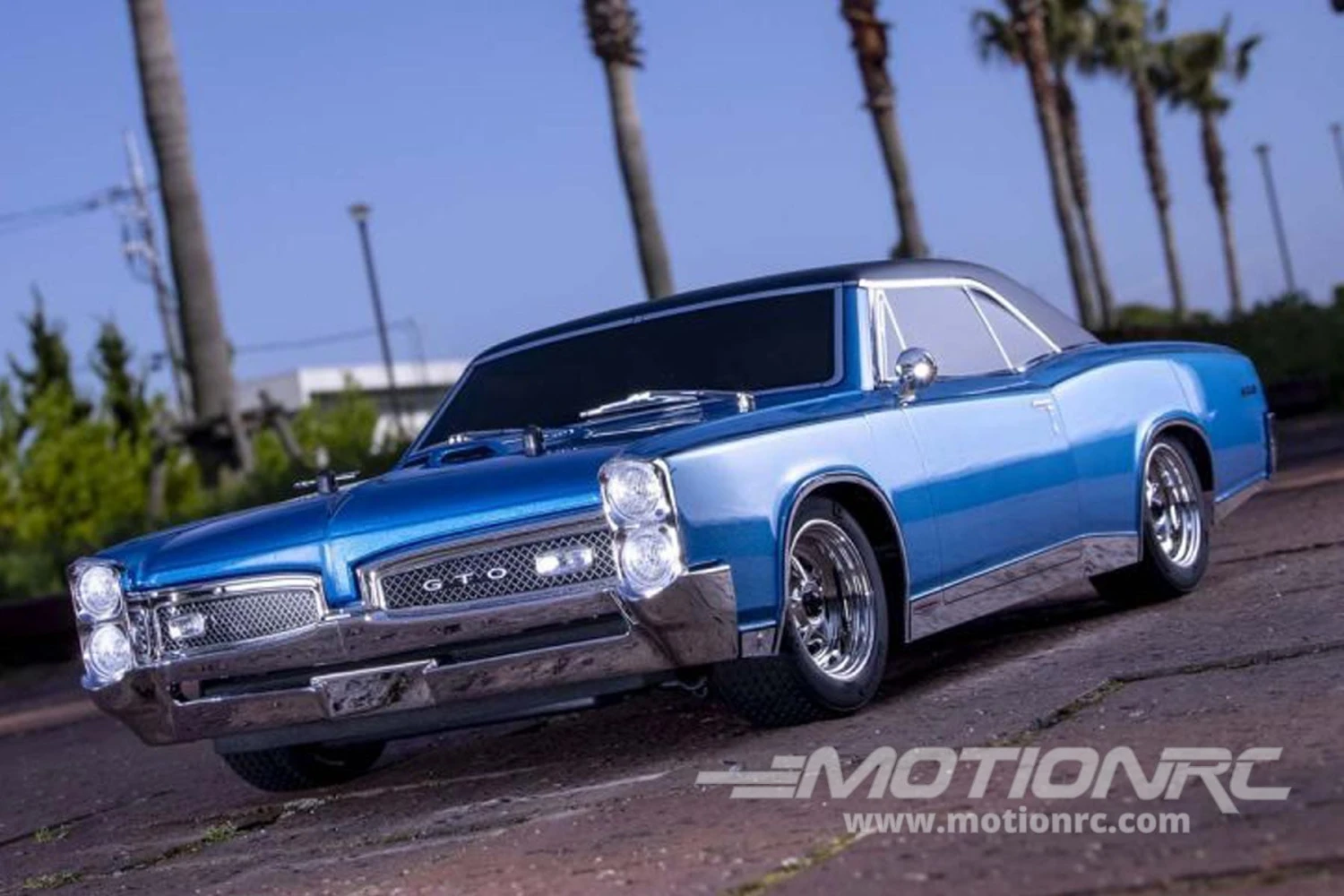

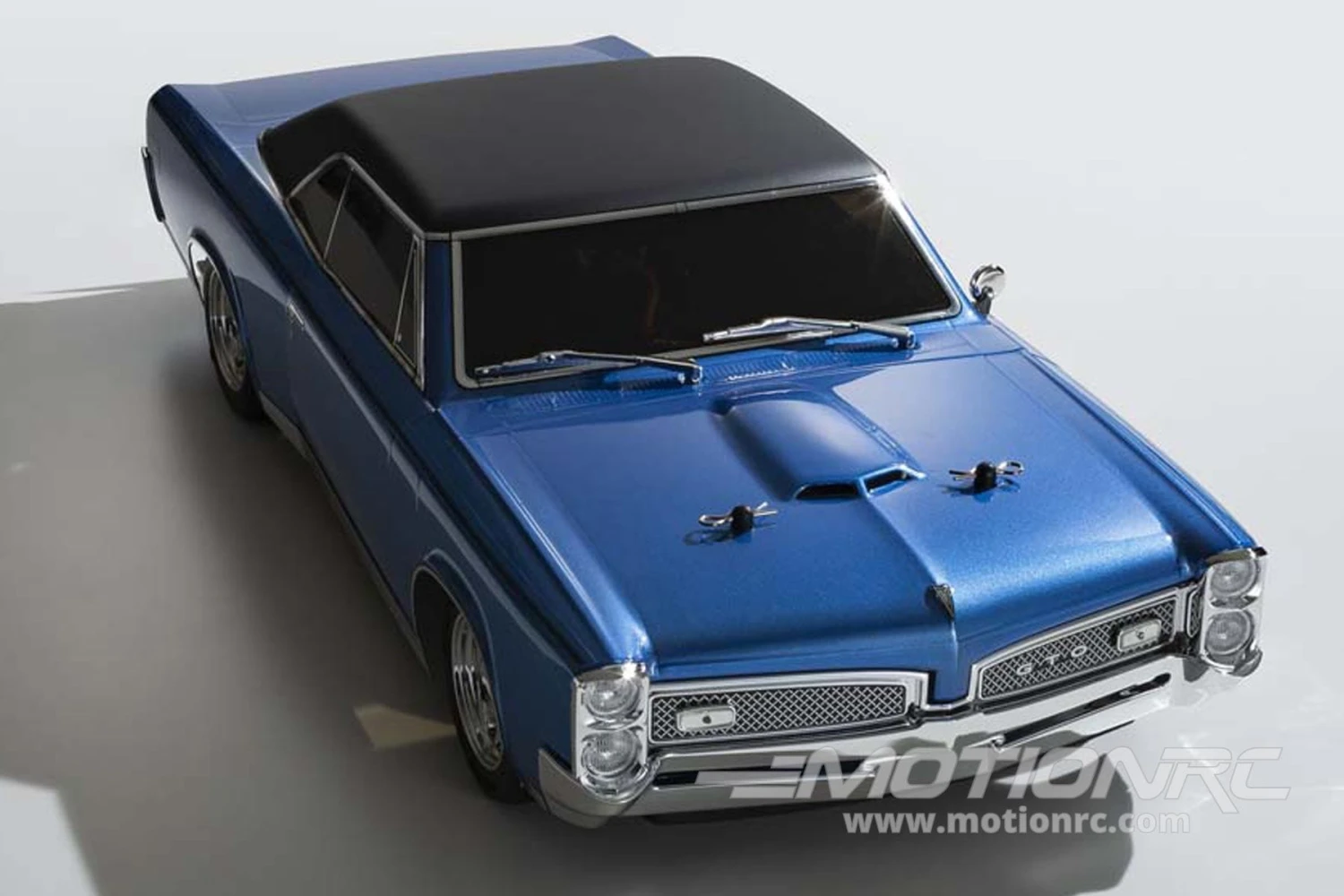

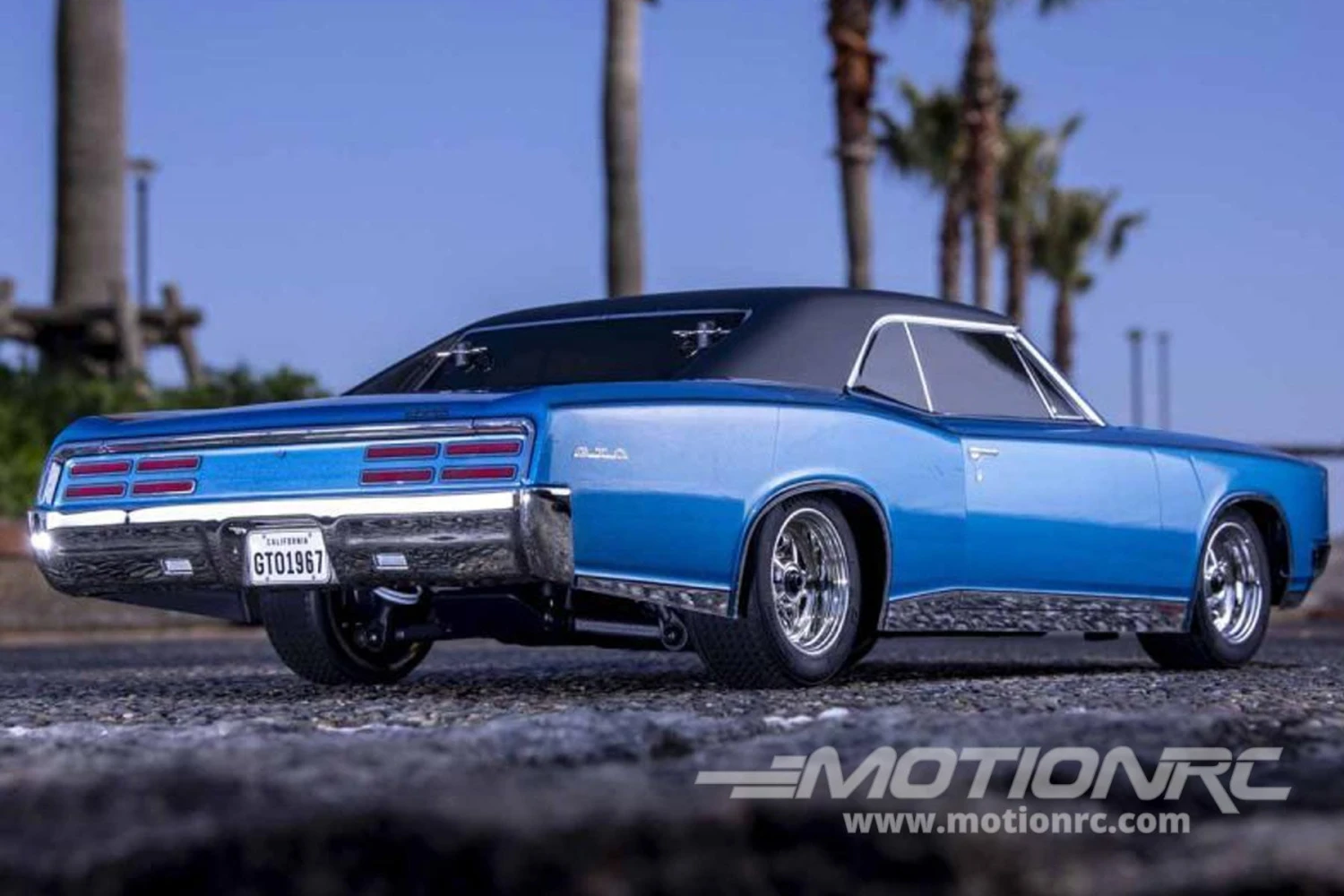

Kyosho Fazer Mk2 FZ02L 1967 Pontiac GTO Tyrol Blue 1/10 Scale 4WD Car – RTR

Fazer Mk2 FZ02L 1967 Pontiac GTO Tyrol Blue 1/10 Scale 4WD Car – RTR from Kyosho – KYO34431T2

Version Info: This car is delivered as “RTR”, however does require 4x AA batteries for the transmitter, a 7.4V 5000mAh LiPo battery and a battery charger, purchased separately (see Requires below for details).

The Kyosho EP Fazer Mk2 FZ02L 1967 Pontiac GTO ReadySet was created for the pure enjoyment of R/C car driving. The combination of a beautifully reproduced body with the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance to a new level. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through materials with ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, regardless of the power source.

Featuring front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 260mm by replacing some parts (not included) for compatibility with other 1/10 scale body styles, in addition to the included body. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, batteries for the transmitter and it is backed by Motion RC’s world-renowned customer service and technical support. Drive on!

  Visit the Official Kyosho Fazer Mk2 FZ02L 1967 Pontiac GTO 1/10 Scale 4WD Car Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

New Chassis Design Completely new chassis realizes low center of gravity with its simple, functional design. Featuring an integrated gearbox that optimizes torsional rigidity of the main chassis, the nylon material reduces weight while improving impact resistance. Each key component has been reinforced in this simple design without upper deck.

Reduced Screws and Parts Features a reduced number and variety of screws and parts, and consolidation of frequently used screws into the same size. Most screws are flat head screws that can be removed with a 2.0mm hex wrench for easy disassembly.

Optimized Handling Handling factors such as bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control movement. Interchangeable on both front and rear left-right hub carriers optimize spare parts utilization and improve maintenance efficiency.

Two Offset Brake Disc Wheel Hubs Includes choice of two offset brake disc wheel hubs with dummy calipers (for visual styling) that provide compatibility with 190mm and 200mm body widths.

New Design Oil Shocks New design oil shocks mark an evolutionary step up from previous models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light handling and precise control. Equipped with long shock end allows a high ride height to pursue true scale appearance.

Wide Range of Gear Ratio Settings Standard spur and pinion gear setting is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to produce a wide range of gear ratio settings. The new fixed gear mesh motor mount has holes for use with each different pinion gears. Just simply mount the motor directly to the hole locations corresponding to the pinion gear. No gear mesh adjustment is necessary.

Features:

• “Ultra Scale Body” replicates the fine details of the actual body of the car.
• Shaft drive full-time 4WD touring chassis (FZ02)
• Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis
• Equipped with 2-bevel grease-filled gear diffs on front and rear
• Large size dog bones and cup joints realize superior reliability and durability
• Belt mounting battery compartment allows various battery types to be used
• Full ball bearings that reduce drive loss equipped throughout the drive system
• Features KS202W waterproof steering servo
• Includes completely finished body with color scheme and decals applied
• Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces
• Performance can be further enhanced by installing various optional parts

Includes:

• Kyosho Fazer Mk2 FZ02L 1967 Pontiac GTO Tyrol Blue 1/10 Scale 4WD Car – RTR
• Completed chassis with R/C radio installed
• Factory assembled body complete with color scheme
• Syncro KT-231P+ transmitter
• Installed 60A waterproof electronic speed controller (forward/brake/reverse)
• +5mm off-set wheel hub (for 200mm width chassis), M4 x 22 wheel screw
• Hexagonal wrench
• Spanner

Requires:

• 4x AA NiMH batteries – we recommend the Admiral AA NiMH 2600mAh Rechargeable Batteries (Pack of 4)
• 7.4V 4000 – 5000mAh LiPo battery – we recommend the Admiral 5300mAh 2S 7.4V 60C Hard Case LiPo Battery with T Connector
• 2S LiPo compatible battery charger – we recommend the SkyRC e3 11W 3 Cell (3S) Compact AC LiPo Battery Charger
