NGH GF60 60cc Four-Stroke Engine

GF60 60cc Inline 2 Cylinder 4 Stroke Gas Motor from NGH – NGH-GF60

The NGH GF60i2 engine features a rare linear double cylinder four stroke design. This configuration is much more technically difficult to produce than typical “flat” arranged engines, and its inline layout makes it an ideal fit for large warbirds.

Compared to the ordinary chrome-plated aluminum used in most RC engine cylinders, this engine’s ductile iron cylinder liner imparts much higher wear resistance, faster heat conduction, a low expansion coefficient, and excellent high-speed stability under common lubrication conditions. The slightly heavier weight and higher manufacturing cost is offset by a truly superior standard in construction and reliability. Low fuel consumption, low emission, low vibration and low noise, the GF60 can produce a power to weight ratio of greater than 2:1. After ~3-4 liters of breaking in, what we like most is the GF60i2 engine’s excellent stability at low rpm, smooth transition to higher rpm, and low vibration.

Features:

• Overhead valve and side camshaft design
• Wedge combustion chamber
• Continuous timing and low tension ring
• Good torque at low speed and excellent power at high speed
• Superb low rpm stability
• Low vibration and low fuel consumption
• Temperature difference between front and rear cylinders is less than 8℃/45 Fahrenheit

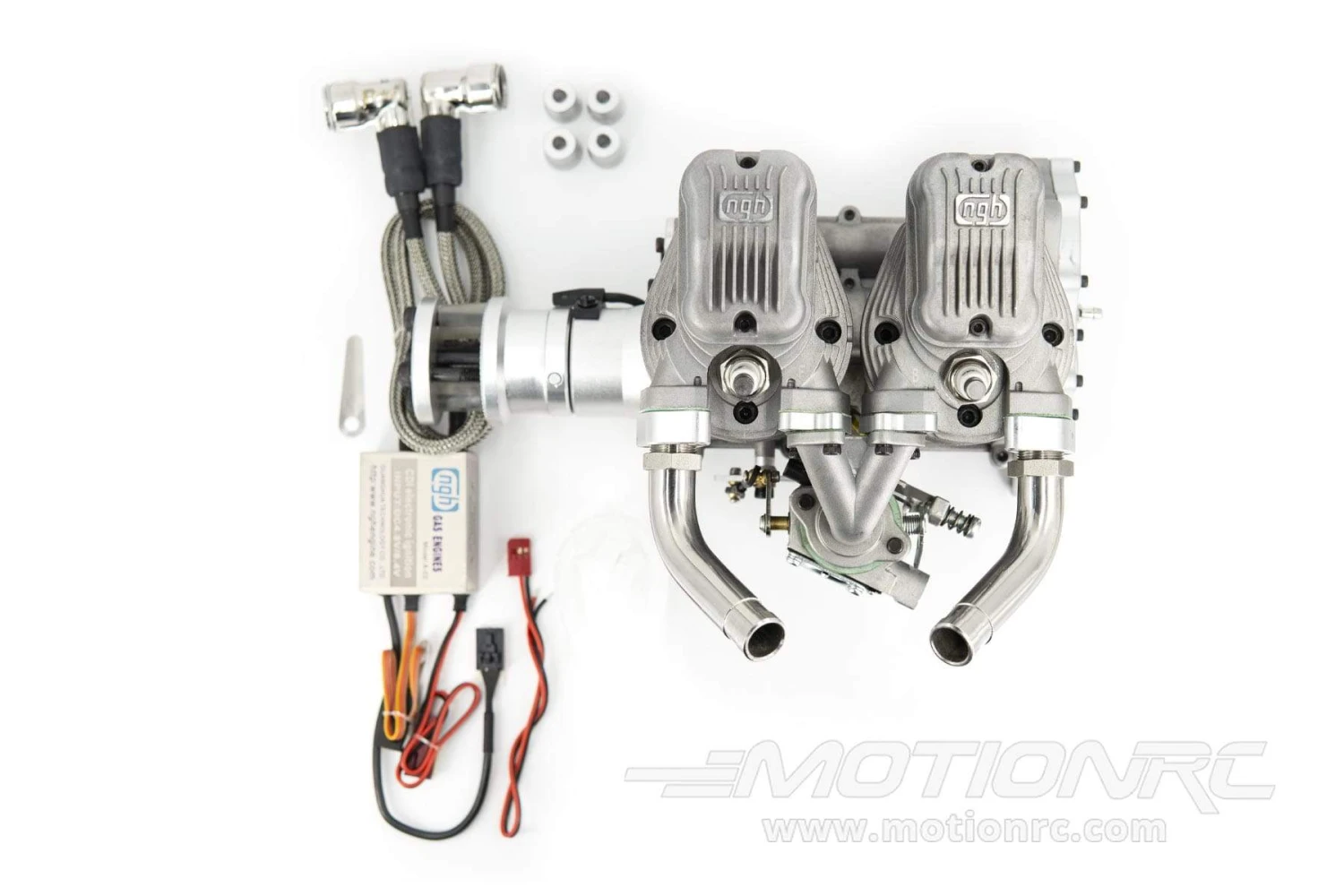

Includes:

• NGH GF60 60cc Four-Stroke Engine
• CDI
• Connecting Line
• Spark Plug
• Mounting Bracket Base
• Tool Set
• English Manual
