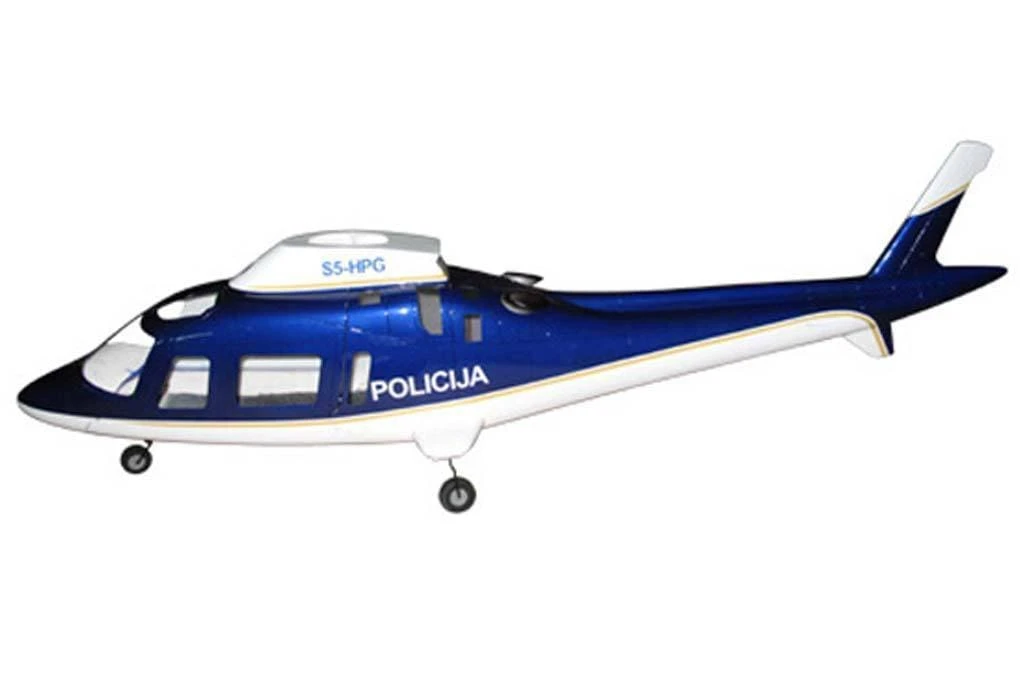

Roban A-109 Blue And White 500 Size Helicopter Scale Conversion – KIT

A-109 Blue and White 500 Size Helicopter Scale Conversion Kit from Roban – RBN-KF109B5

This is the 500 class conversion kit of the A-109 helicopter, a lightweight, twin-engine, eight-seat multi-purpose helicopter. The A-109 had the distinction of being the first all-Italian helicopter to be mass-produced. Designed to take your Chaos 500 or Trex torque tube versions and transform it into a scale RC version of the twin engine Italian-manufactured workhorse.

When you open the box, the fuselage is completely painted in standard automotive base coat and clear coat for a super gloss finish. Included are retractable scale metal landing gear. The retracts are mechanical and require two additional servos (not included) to operate. Aluminum wheels and rubber tires give this kit a very scale look.

Working sliding doors allow easy access to the mechanics as well as the entire top dog house being removable with factory installed magnets and locating pins. Designed for easy battery removal. This fuselage can be completed in as little as 4-6 hours and is intended for the intermediate to advanced builder. No modifications needed when using stock mechanics and stock rotor head.

Visit the Official Roban 500 Size A-109 Blue and White Scale Helicopter Conversion Kit Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.

Features:

• Fully painted fiberglass scale fuselage
• Scale retractable metal landing gear (requires 2 additional servos)
• Detailed surface with molded panel lines
• Use of 500 standard equipment (6S Battery, 1400-1600Kv motor), fly with your existing parts

Includes:

• Roban A-109 Blue and White 500 – body kit
• Scale retractable metal landing gear (requires 2 additional servos)

Requires:

• 2 servos to operate the mechanical retracts
• 500 Size helicopter kit
• Helicopter flight controller – we recommend the BeastX MicroBeast Plus Flybarless System
• Brushless motor – we recommend the Scorpion HK 3226-1400Kv Brushless Motor
• Electronic speed control (ESC) – we recommend the Castle Creations Phoenix Edge 100A ESC with 5A SBEC
• Battery eliminator circuit (BEC) – we recommend the Castle Creations 20A BEC Pro
• Three cyclic servos – we recommend the MKS HV9767 Titanium Gear High Voltage Servo Multi-Pack (3 Servos)
• Tail servo – we recommend the MKS DS HV9780 High Voltage Tail Servo for 500 Size Roban Helicopters
• 6 Cell 22.2V 2600-3300mAh LiPo battery – we recommend the Admiral 6 Cell 22.2V 3300 mAh LiPo Battery with XT60 connector
• 7 Channel radio – select a minimum 7 channel radio with pitch and throttle curves from our Radio Collection
• 7 Channel receiver – select a minimum 7 channel receiver from our Receiver Collection

Optional:

• Castle Link USB ESC Programming Kit V3
